Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer

Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer
Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer
Basisinformatie
Certificering: RoHS
Min. bestelaantal: 5
Prijs: 20
Beste prijs Contact nu
Gedetailleerde informatie
Model-NR.: HT15V Voor: Diffuse siliciumdrukzender
Type uitgangssignaal: Analoogtype productieproces: Integratie
Materiaal: Roestvrij staal Threadtype: Nee
Draadtype: Vier-draad Meetmedium: Gas en vloeistof
IP-beoordeling: IP65 Aangepast: Aangepast
Trefwoorden: Mini sensor Levering: 5-10VDC
Draad: 13 mm siliconendraad Uitvoer: mv signaal
Transportpakket: karton Specificatie: 15 mm
Handelsmerk: HengTong Oorsprong: China
HS-code: 9026209090 Productiecapaciteit: 50000 stuks/jaar
Markeren:

stainless steel pressure sensor

,

high accuracy load cell

,

micro pressure transducer

Productomschrijving

Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer 0
Stainless Steel Micro Small pressure Sensor High Accuracy Pressure Load Cell
HT15V Silicon Piezoresistive Pressure Sensor

Introduction:

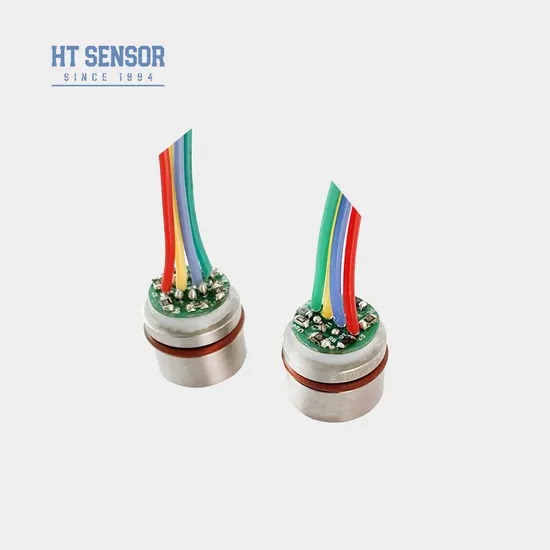

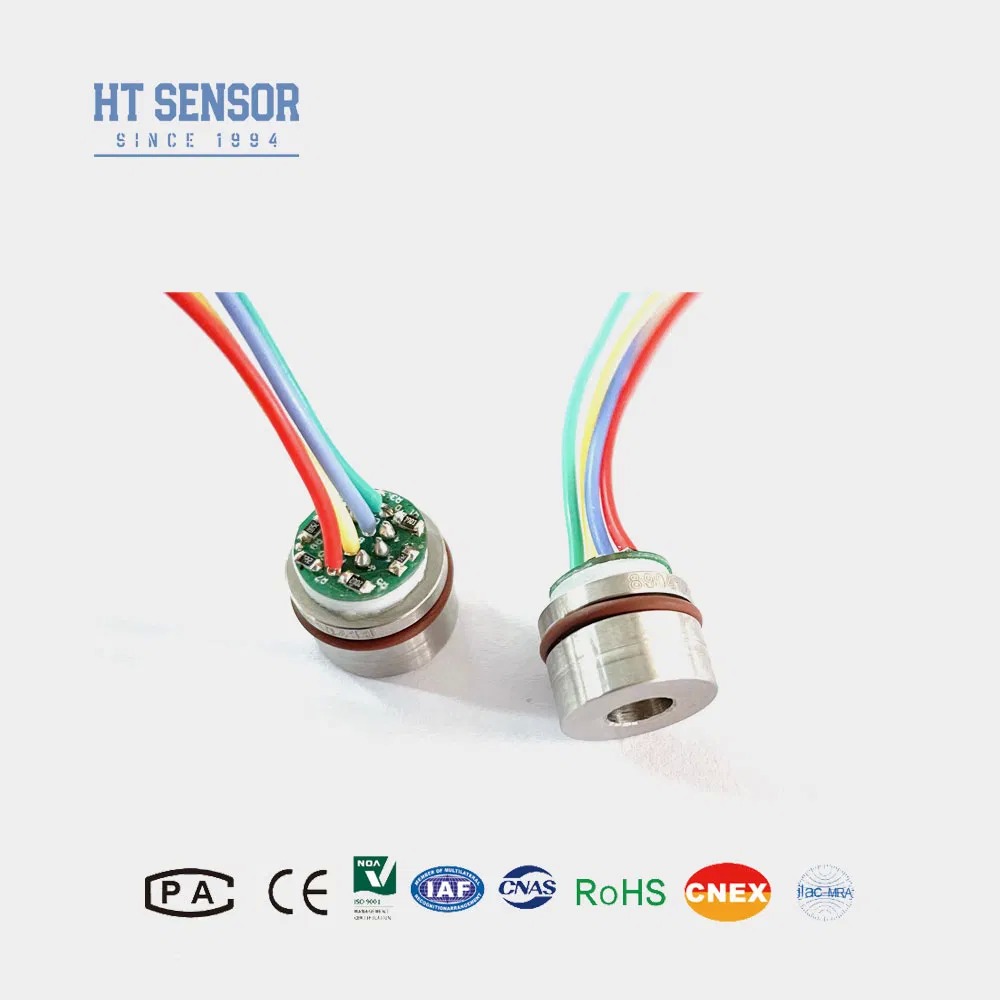

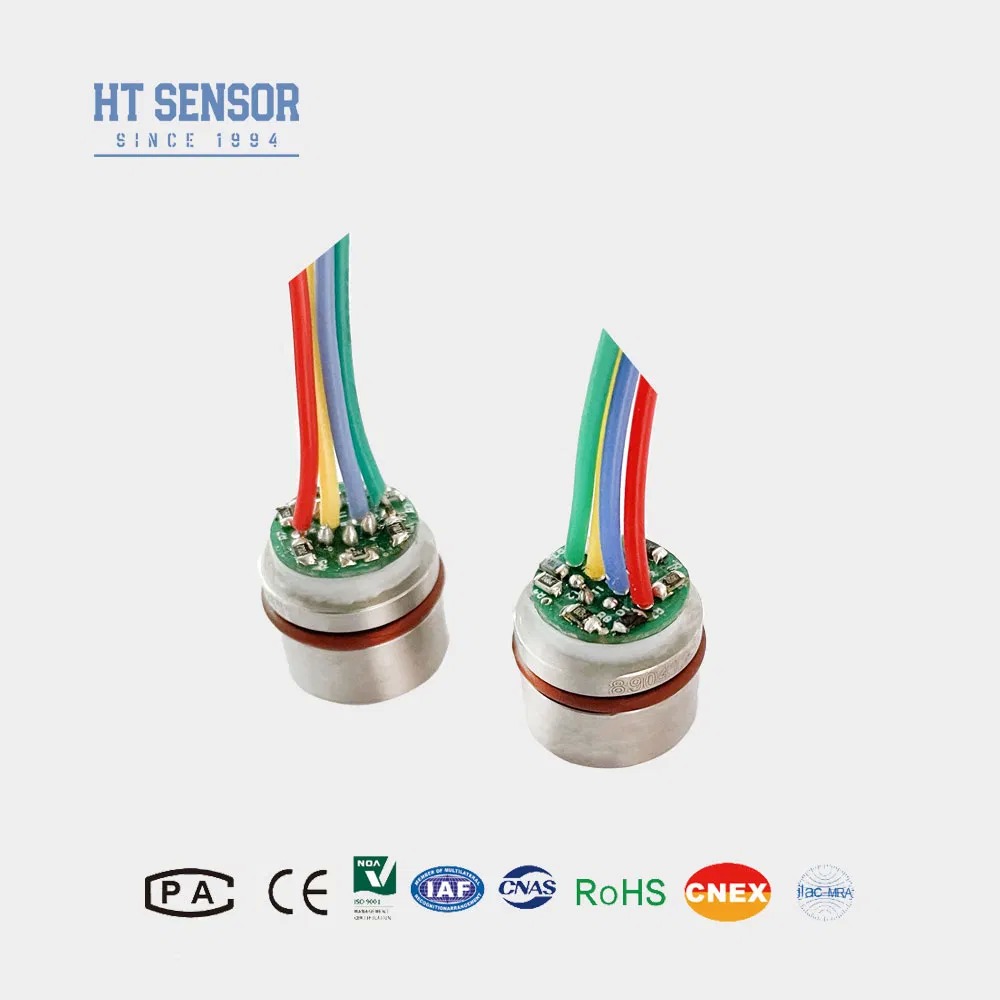

HT15V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. It employs the piezoresistive effect of diffused silicon for precise measurement of both liquid and gas pressures. This sensor finds extensive usage in various applications, including air compressors and refrigeration systems .
Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer 1
Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer 2
Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer 3


Product  Features:
  1. Utilizes advanced technology and is encapsulated in a 316L stainless steel housing
  2. Wide measuring range 0~350KPa~60MpaS
  3. High reliability and excellent stability
  4.  Constant voltage supply
Applications:
  1. Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
  2. Compact design, ideal for applications with limited space
  3. Used in process control systems for monitoring and controlling pressure
  4. Commonly used in refrigeration systems and air compressors for pressure measurement
Electrical performance:
  1. Power Supply: ≤10VDC
  2. Common Mode Voltage Output: 50% of the input (typical)
  3. Input Impedance:4KΩ~20KΩ
  4. Output Impedance:2.5KΩ~6KΩ
  5. Electrical Connection:100mm high-temperature wire,ribbon cable
Performance Parameters:
Measurement Range Gauge(G) 350KPa,1000KPa,2000Kpa
Absolute(A) 350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S) 3500KPaS,7MPaS,10MPaS
  Typ Max Unit
NonLinearity   ±0.15 ±0.3 %F.S
Repeatability  0.05 0.1 %F.S
Hysteresis    0.05 0.1 %F.S
Zero Offset Output   0±1 0±2 mV
Full Scale Output   100±1 100±2 mV
Zero Offset Temp. Drift   ±0.8 ±2 %F.S
Full Scale Temp. Drift ±0.8 ±2 %F.S
Compensated Temp. 0~70 ºC
Operating Temperature   -20~80 ºC
Storage Temperature  -40~125 ºC
Allowable Overload Take the smaller value between 3 times the full scale or 80MPa
Burst Pressure 5X the full scale
Long-term Stability 0.2 %   F.S/Year
Diaphragm Material 316L
Insulation Resistance ≥200MΩ 100VDC
Vibration No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock 100g,11ms
Response Time ≤1ms
O-ring Seal Nitrile rubber or Fluoro rubber
Filling Medium Silicon Oil
Weight ~20g
The parameters are tested under the following conditions:  10V @25ºC

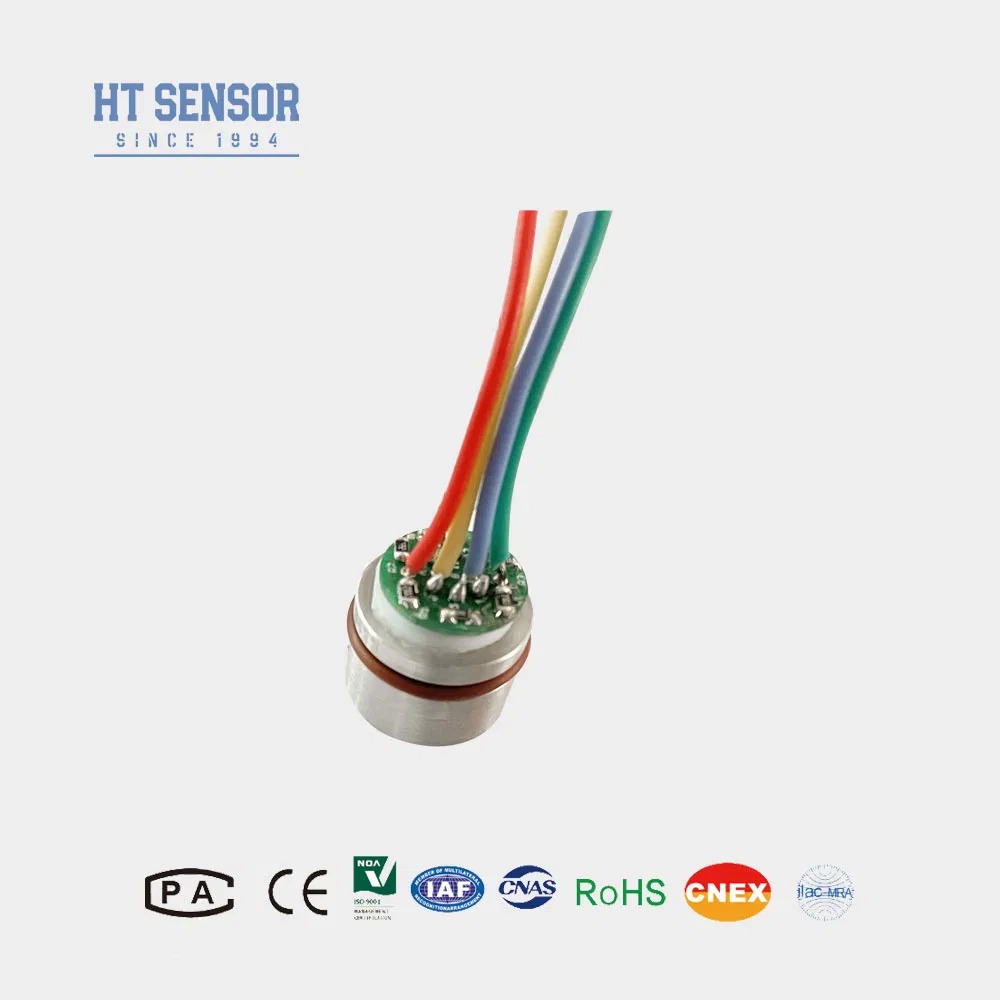

Outline Construction
Dimension Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer 4

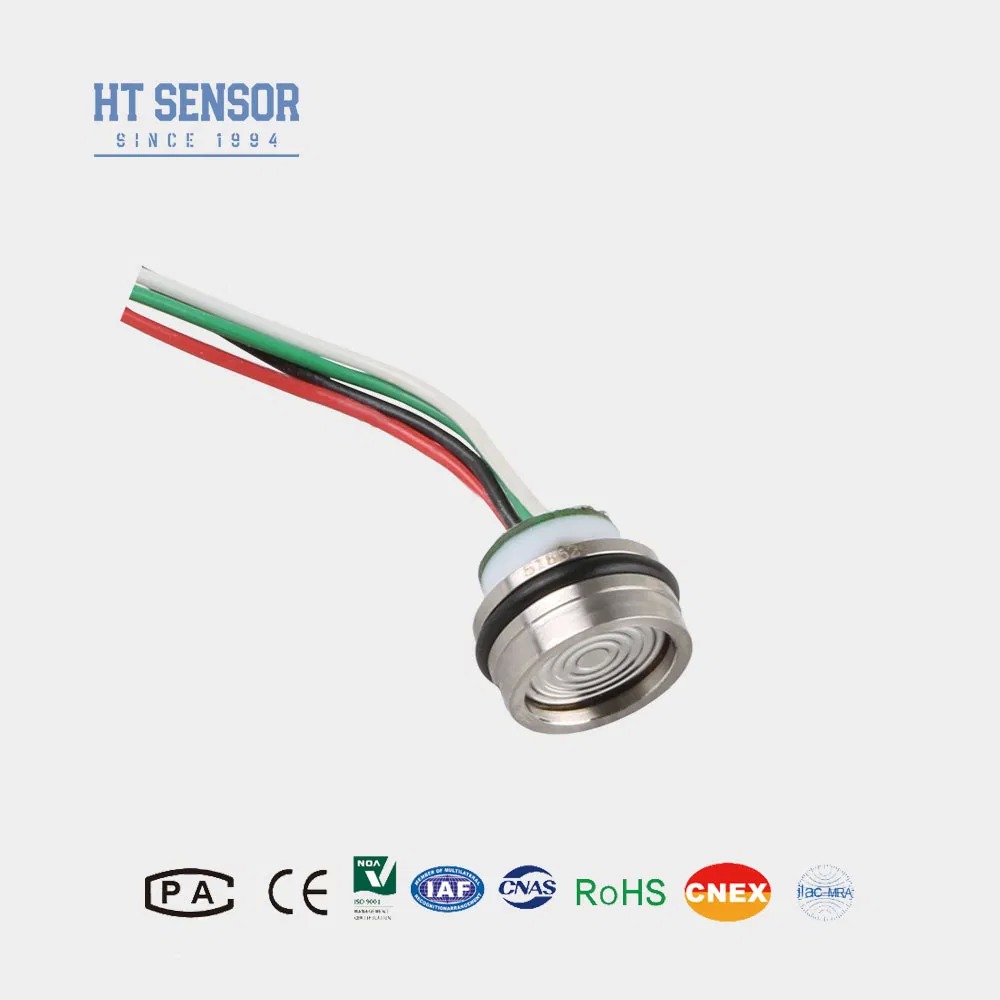

Electrical connection and compensation

Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer 5




Selection Examples
Stainless Steel Micro Small Pressure Sensor High Accuracy Pressure Load Cell Pressure Transducer 6


Ordering tips
1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required air tightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
