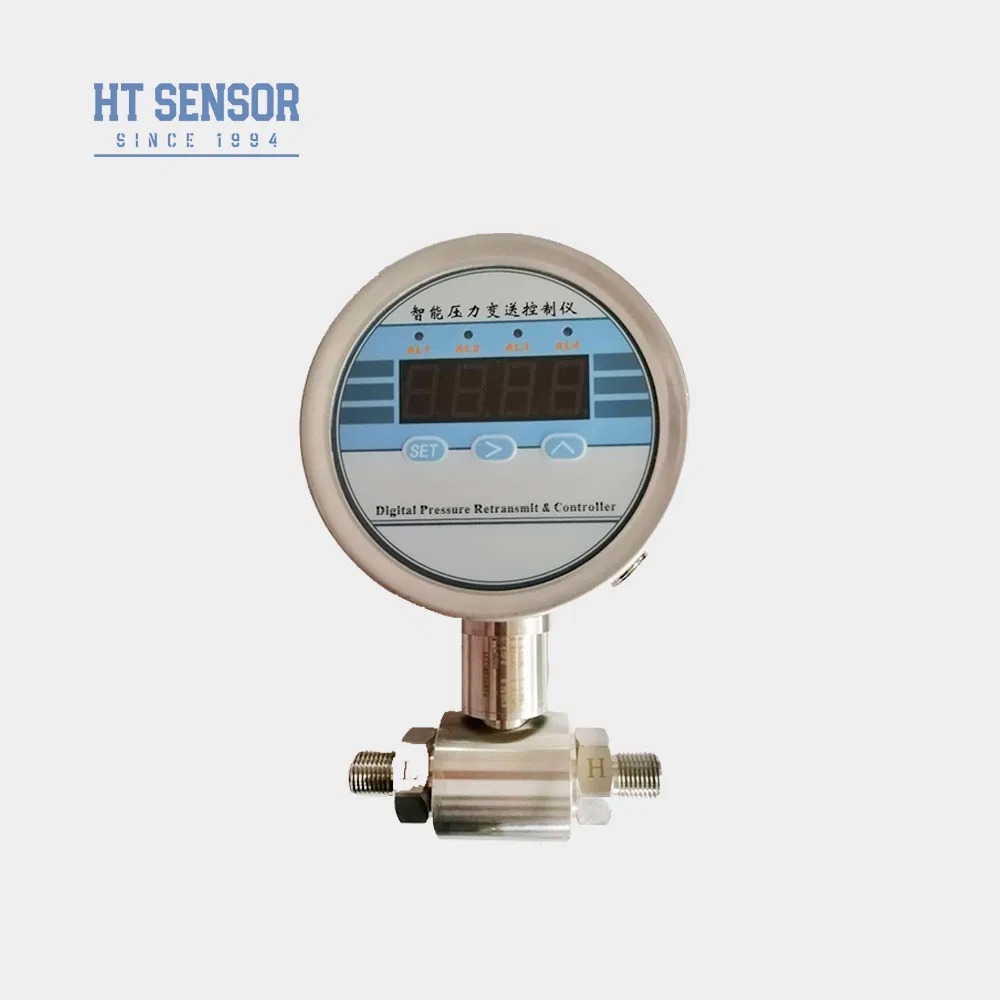

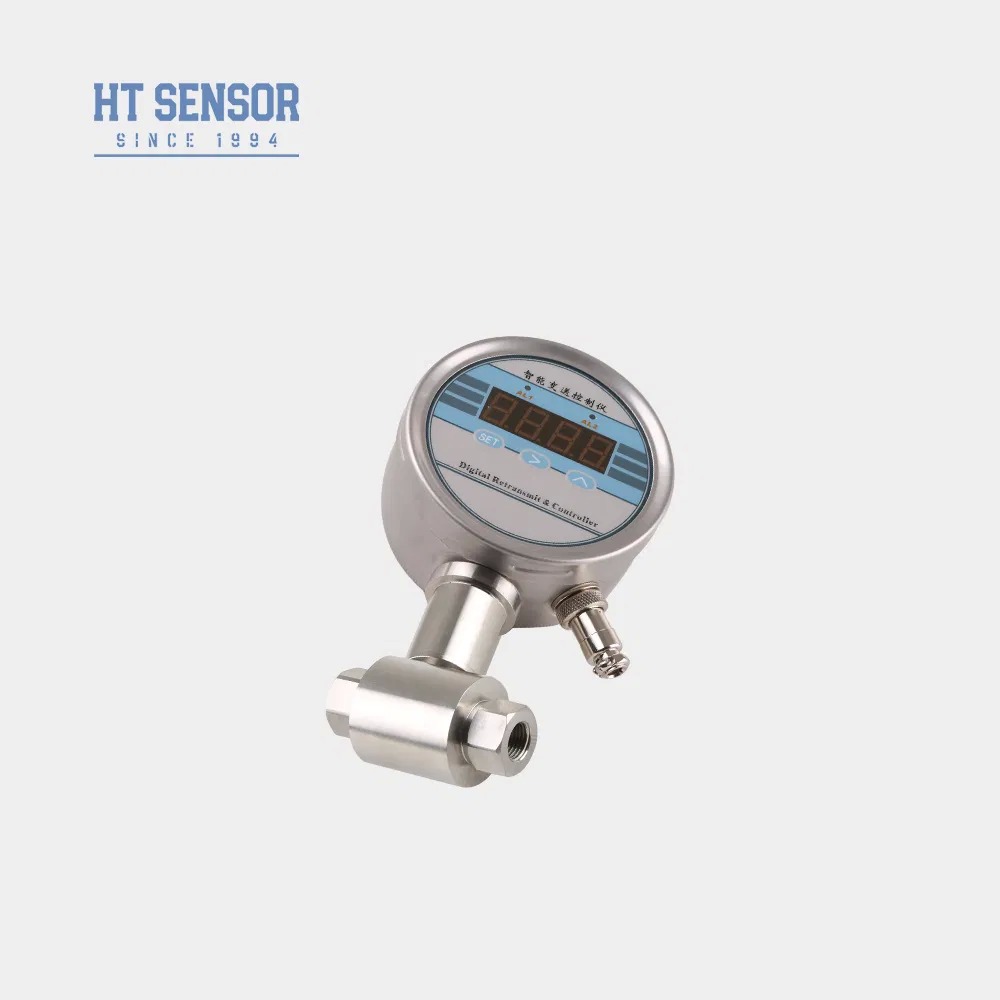

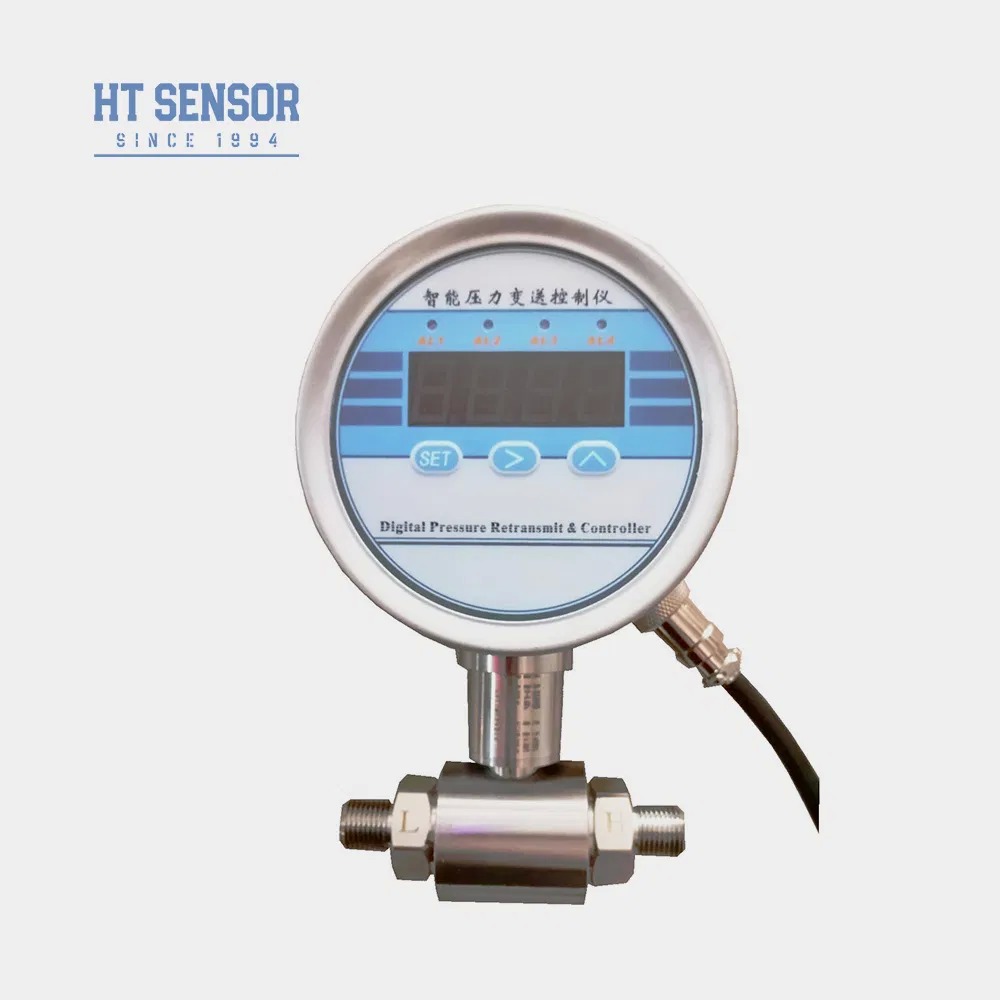

LED Display Differential Pressure Switch Controller Level Sensor Switch

LED Display Differential Pressure Switch Controller Level Sensor Switch
LED Display Differential Pressure Switch Controller Level Sensor Switch LED Display Differential Pressure Switch Controller Level Sensor Switch LED Display Differential Pressure Switch Controller Level Sensor Switch LED Display Differential Pressure Switch Controller Level Sensor Switch LED Display Differential Pressure Switch Controller Level Sensor Switch
Basisinformatie
Certificering: ISO9001
Min. bestelaantal: 1
Prijs: 80
Beste prijs Contact nu
Gedetailleerde informatie
Modelnr.: BPZK04-D Structuur: Versterker ingebouwd
Gebruik: Besturingsschakelaar Applicatie: Commerciële, industriële, voertuigen
Explosiebestendig type: Intrinsiek veilig contact: Normaal geopend
Contacttype: Type c Contact Detectiemethode: Type correlatie
Schakelaar: Tweerichtingsrelais Stroom: 24VDC /24VAC
Uitvoer: 4-20 mA Draad: 5-9 draad
Transportpakket: karton Specificatie: 10kpa~100Mpa
Handelsmerk: HengTong Oorsprong: China
Hs-code: 80328100 Productiecapaciteit: 50000 stuks/jaar
Markeren:

LED display differential pressure switch

,

level sensor switch with LED

,

pressure transmitter sensor controller

Productomschrijving

LED Display Differential Pressure Switch Controller level sensor
BPZK04 Electronic Pressure Switch

Introduction:
BPZK04 differential electronic pressure switch is a fully digital measurement and control product that integrates pressure measurement, point control display, and transmission output. It can be directly installed at the pressure measurement point in the field or on the control screen of the test bench. It allows on-site setting of parameters such as zero value, full-scale value, and contact pressure value using the keypad.

LED Display Differential Pressure Switch Controller Level Sensor Switch 0

Product  Features:
  1. Stainless steel structural design with versatile pressure interface options.
  2.  with high-brightness LED pressure display.
  3. Powered  24VDC.
  4. Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
  5. High accuracy.

Applications:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.

Performance Parameters
Measurement Range 0-10KPa~2MPa(Differential Pressure)
Pressure Type Differential Pressure
Overload ≤ 1.5 times of the rated range
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability ±0.3%F.S/year
Zero Point Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Full Scale Temperature Drift ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature -20ºC~80ºC
Storage Temperature -40ºC~120ºC
Housing Material 1Cr18Ni9Ti
Diaphragm Material 316L
Insulation Resistance 100MΩ 100VDC
Relay Control 1-2 channels of control or electronic switch quantity control
Contact Life Exceeds 100,000 cycles
Display Range -1999~9999
Installation Method vertical axis installation
Explosion-proof Rating Intrinsically Safe
Protection Rating IP65
Weight ~0.65kg
Outline Construction
Dimension LED Display Differential Pressure Switch Controller Level Sensor Switch 1

LED Display Differential Pressure Switch Controller Level Sensor Switch 2
Ordering tips

1. When selecting the product, please ensure that the measured medium is compatible with the contacting parts of the product.
2. When placing an order, please specify the power supply, accuracy grade, number of control points, and whether it comes with an RS485 interface.
3. The measurement range of the flat diaphragm pressure controller is 0~35KPa...20MPa.
4. For users selecting differential pressure measurement, pay attention to the relationship between the differential pressure range and the allowable overpressure and maximum pressure of the high and low pressure chambers, and ensure it aligns with the requirements of the field application. To ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
5. To ensure the reliable operation of the product, it is recommended to install lightning protection devices at the site and ensure that the product and power supply are reliably grounded. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, and radio frequency interference, please inform our company and specify them in the order.
