Thuis > Producten> Industriële druksensoren> - Compact and Durable Industrial Pressure Sensor in the Air Compressor and Refrigeration Industry

- Compact and Durable Industrial Pressure Sensor in the Air Compressor and Refrigeration Industry

- Compact and Durable Industrial Pressure Sensor in the Air Compressor and Refrigeration Industry
- Compact and Durable Industrial Pressure Sensor in the Air Compressor and Refrigeration Industry - Compact and Durable Industrial Pressure Sensor in the Air Compressor and Refrigeration Industry
Basisinformatie
Plaats van herkomst: CN
Merknaam: HT
Certificering: CE, RoHS
Modelnummer: BP155
Min. bestelaantal: 1
Prijs: 15
Beste prijs Contact nu
Gedetailleerde informatie
Model nr.: BP155 Het meetmedium: Gas
Nauwkeurigheidsgraad: 0,2 g Drukbereik: 0kpa~10kpa...5MPa
IP -beoordeling: IP65 Druktype: Meting van de druk, absolute druk, verzegelde druk
Woningmateriaal: 316L Langetermijnstabiliteit: 00,1% F.S./jaar
Overladen: ≤ 1,5 keer van het nominale bereik Nauwkeurigheid @ 25ºC: ± 0,25% (typisch) ± 0,5% (maximaal)
Herhaalbaarheid en hysteresis: 0,02%FS (typ.) 0,05%FS (max.) Temperatuurverschuiving tot nulpunt: ± 0,02%FS/ºC (≤100kpa) ± 0,01%FS/ºC (> 100 kpa)
Volledige temperatuurafwijking: ± 0,02%FS/ºC (≤100kpa) ± 0,01%FS/ºC (> 100 kpa) Frequentierespons: 2.4kHz
Bedrijfstemperatuur: -20ºC ~ 80ºC
Markeren:

industrial pressure sensor 316L stainless

,

IP65 industrial pressure sensor

,

0.2G accuracy pressure sensor

Productomschrijving

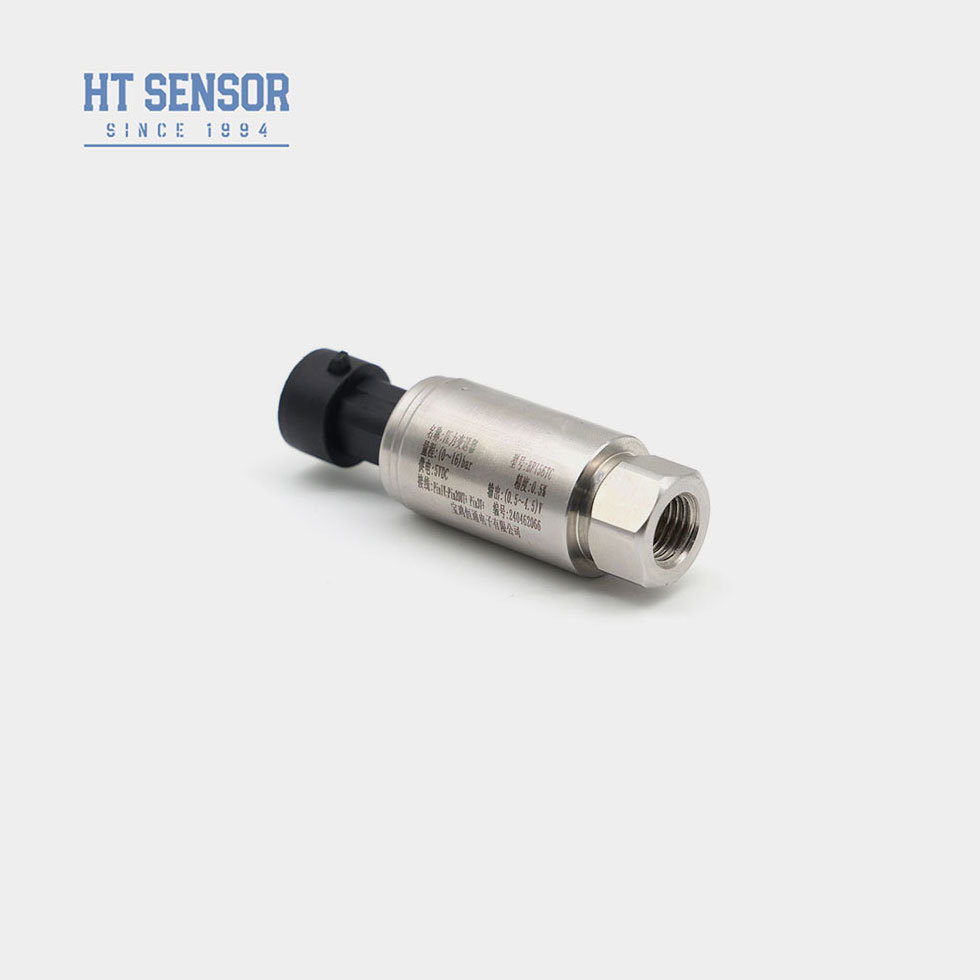

                                                 BP155 Pressure Transmitter

The BP155 pressure transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. This high-performance product features our proprietary transmitter circuit technology, offering compact size, superior moisture resistance, and excellent electromagnetic interference protection.

- Compact and Durable Industrial Pressure Sensor in the Air Compressor and Refrigeration Industry 0
Key Features
  • Wide measuring range with stainless steel construction
  • Multiple pressure interface options available
  • Compact and lightweight design
  • Adjustable zero and full-scale settings
  • High precision measurement with all stainless steel structure
Applications
  • Pressure measurement of non-corrosive gases and liquids (316L stainless steel)
  • Marine and aviation industry applications
  • Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
  • Hydraulic and pneumatic control systems
Performance Parameters
Measurement Range 0kPa ~ 10kPa...5MPa
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Accuracy @ 25°C ±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Operating Temperature -20°C~80°C
Housing Material 304, 316L Stainless Steel
Protection Rating IP65
Explosion-proof Rating Ex db IIC T6 Gb
Output Signal Specifications
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA   3 wire
0/1~5V, 0/1~10V, 0.5~4.5V 5VDC
Ordering Information
Important Notes:
  • Ensure medium compatibility with product contact parts
  • Explosion-proof models exclude digital display heads
  • Minimum 20VDC required for transmitters with LCD/LED displays
  • Recommended installation of lightning protection devices
  • Default cable length: 1.5m (multiple material options available)
Order Guide
Code Option
BP15X Analog Pressure Transmitter
5,6,7,8 Outline Construction Options
D1,D2,D3 Power Supply Options
S1-S7 Output Signal Options
J1-J5 Pressure Connection Options
G,A,S Pressure Type Options
- Compact and Durable Industrial Pressure Sensor in the Air Compressor and Refrigeration Industry 1
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: Our transmitters offer high precision, durability, and excellent performance with customization options available.
Q: Can I customize special specifications?
A: Yes, our engineering team provides OEM and ODM services to meet specific requirements.
Q: What is your production capacity?
A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large order coordination.
Q: What's the typical delivery period?
A: Standard models: 5-8 working days. Custom products may vary.
Q: What is your warranty policy?
A: 24-month warranty with 24-hour response time for after-sales support, including remote assistance.
