Gedetailleerde informatie

Model nr.:	BP93420-IX	Het meetmedium:	Vloeistof
Nauwkeurigheidsgraad:	≤ 0,5% F.S.	Drukbereik:	- 100kpa... 0kpa ~ 10kpa... 100MPa
IP -beoordeling:	IP65	Druktype:	Meting van de druk, absolute druk, verzegelde druk
Woningmateriaal:	316L roestvrij staal	Frequentierespons:	2.4kHz
Overbelastingscapaciteit:	≤ 1,5 keer van het nominale bereik	Bedrijfstemperatuur:	-20ºC ~ 80ºC
Opslagtemperatuur:	-40ºC ~ 120ºC	Diafragma -materiaal:	316L
Isolatieweerstand:	100MΩ 100VDC	Gewicht:	~ 0,25 kg
Voedingsspanning:	12 ~ 30VDC, 5VDC, 3.6 ~ 30V / batterij
Markeren:	Digital Pressure Transmitter 0.5% Accuracy , IP65 Industrial Pressure Sensor , BP93420-IX Pressure Transmitter with Warranty

Productomschrijving

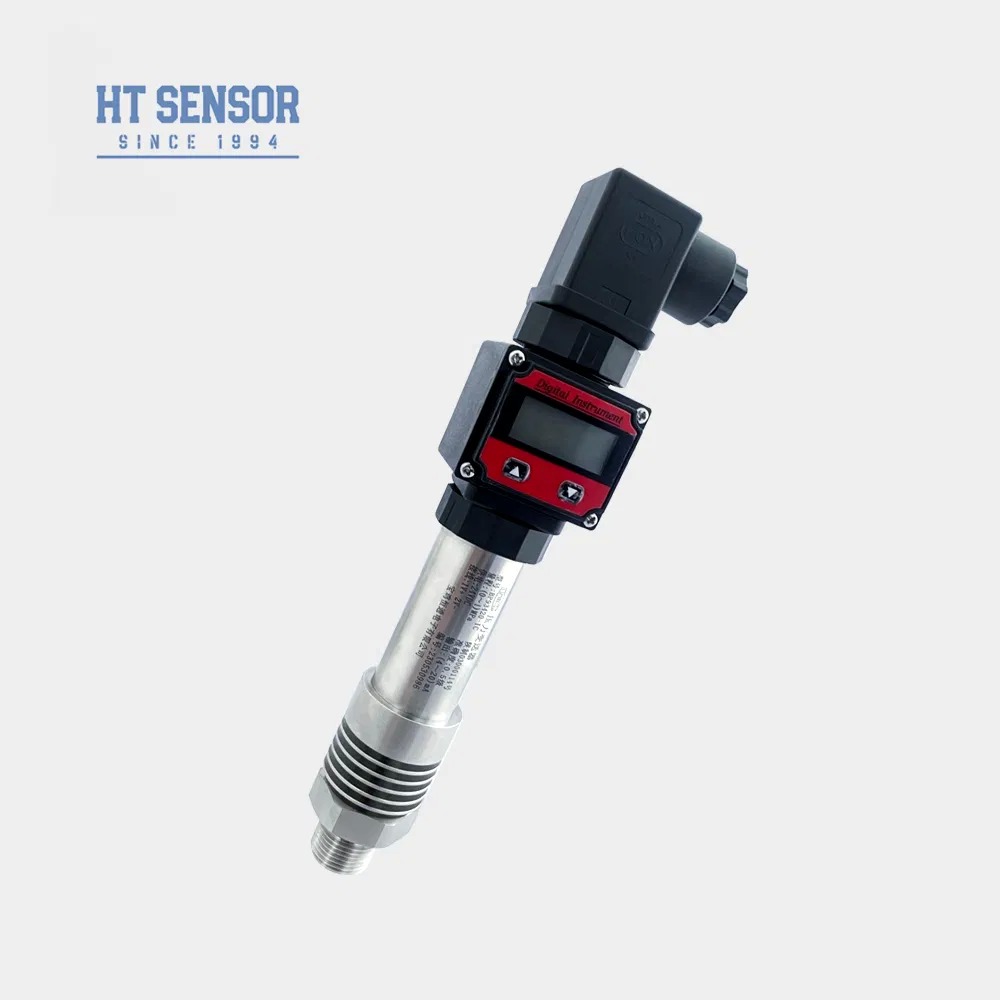

BP93420-IX Pressure Transmitter

The BP93420IX pressure transmitter utilizes the HT series silicon piezoresistive isolation diaphragm oil-filled core as the signal measuring element. This integrated pressure transmitter combines pressure measurement, display, and output functions. Rigorously tested with comprehensive aging screening of components, it delivers stable, reliable performance with easy operation and calibration.

Key Features

Wide measurement range with stainless steel construction
Multiple pressure interface options available
High precision with optional digital display

Applications

Scientific research applications
Petroleum and chemical industries
Marine and aviation sectors

Performance Specifications

Measurement Range	-100kPa...0kPa ~10kPa...100MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typ.) ±0.5% (Max.)
Repeatability & Hysteresis	0.02%F.S(Typ.) 0.05%F.S(Max.)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10MPa, customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g, 55Hz ~ 2kHz
Housing Material	Cast aluminum
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.25kg

Output Signal Options

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Ordering Information

Important Notes

Ensure medium compatibility with product contact parts
Explosion-proof models exclude digital display heads
For LCD/LED displays, power supply ≥20VDC required
Install lightning protection and ensure proper grounding
Fluoro rubber O-ring rated for -20ºC to 250ºC (EPDM required below -20ºC)
Default 1.5m polyethylene cable (other materials available)
Specify special requirements (vibration, EMI, etc.) when ordering

Order Guide

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
Additional codes and configurations available - see full specifications
