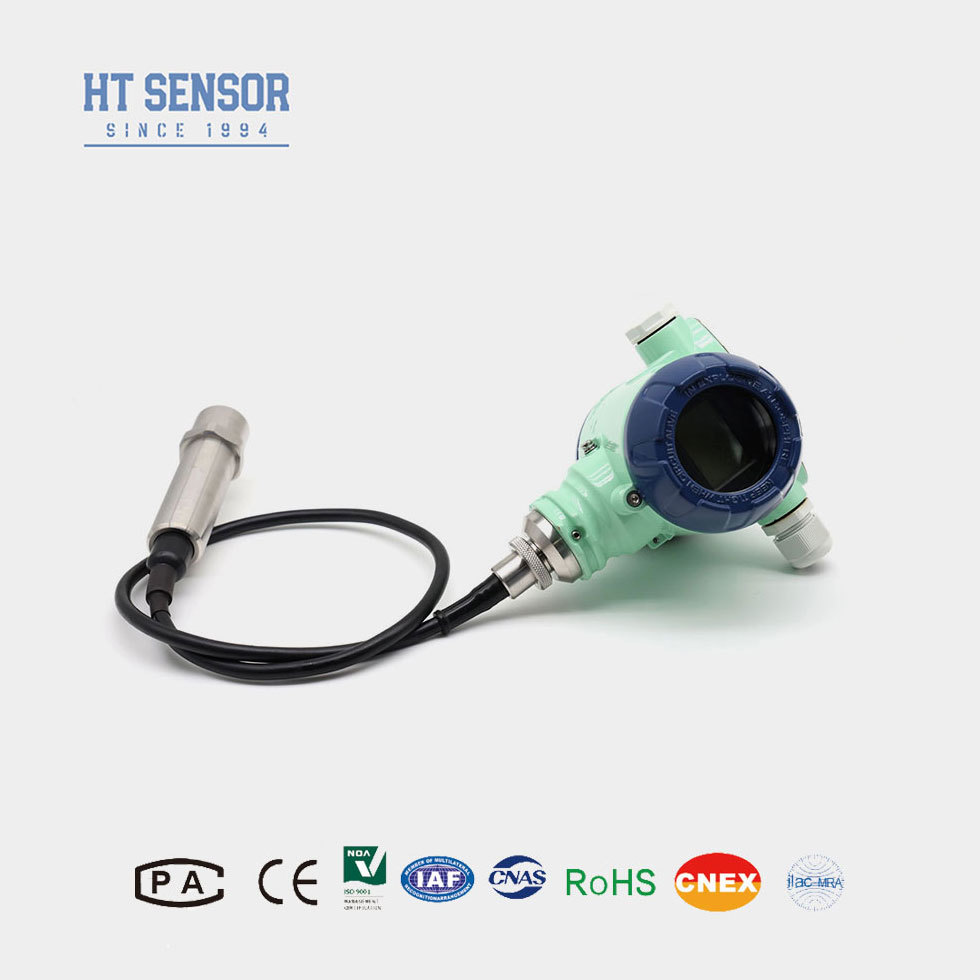

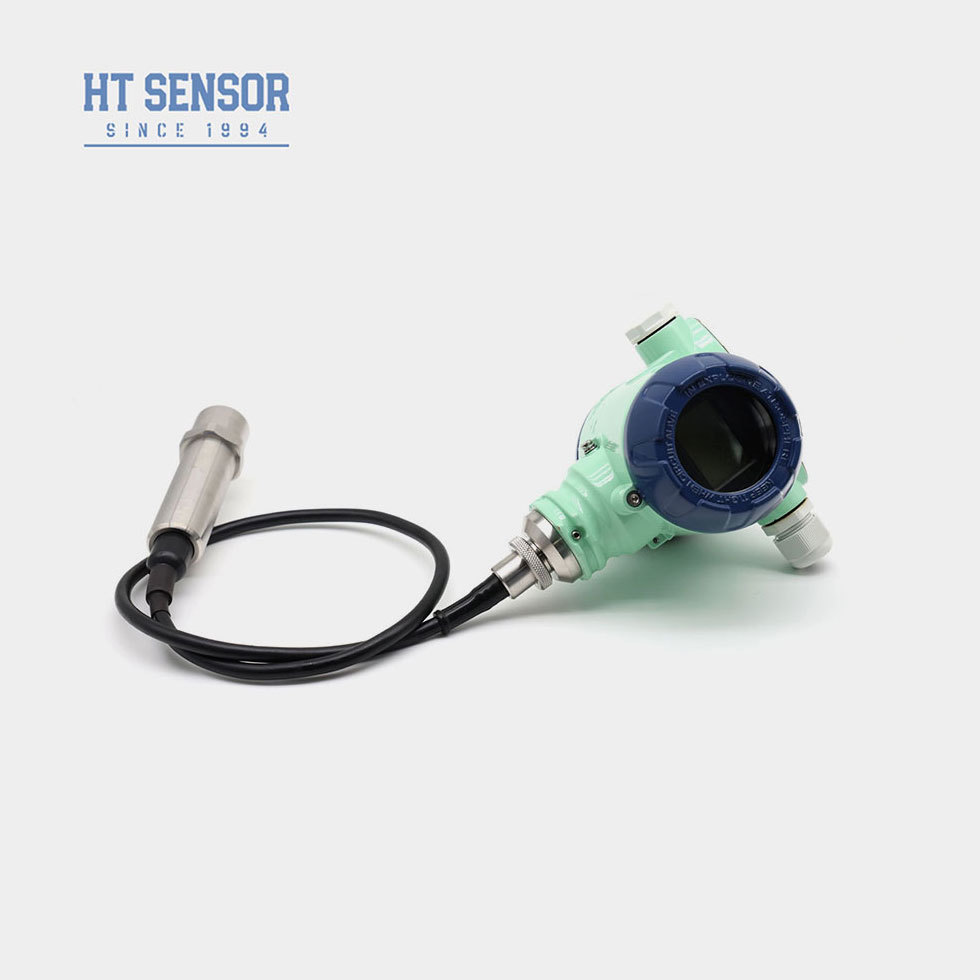

Name: BH93420-III Advanced Water Level Transmitter for Industrial Applications
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BH93420-III
Price: 70 USD
Availability: InStock

Gedetailleerde informatie

Model nr.:	BH93420-III	Drukbereik:	0-1m-400 mH2O
Type weergave:	Geleid	Nauwkeurigheidsgraad:	0.1%,00,25%
IP -beoordeling:	IP68	Netto gewicht:	1,6 kg
Diafragma -materiaal:	316L roestvrij staal	Meetbereik:	0 ~ 10m… 400mh2o
Druktype:	Meting van de druk, absolute druk, verzegelde druk	Overladen:	≤ 2x nominaal bereik
Nauwkeurigheid @ 25ºC:	± 0,1% (typ.) ± 0,2% (max.)	Bedrijfstemperatuur:	-20 tot 80 °C
Opslagtemperatuur:	-30 ~ 100ºC	Woningmateriaal:	Gegoten aluminium, roestvrij staal 1cr18ni9ti
Uitgangssignaal:	4~20mA met HART
Markeren:	HT Sensor water level transmitter IP68 , BH93420-III water level sensor 0.1% accuracy , submersible water level transmitter with warranty

Productomschrijving

BH93420-III Water Level Transmitter with 0.1% Accuracy

Product Description

The BH93420-III insertion-type intelligent water level transmitter features a high-precision piezoresistive silicon pressure sensor for measuring static pressure proportional to liquid level. Utilizing HART communication protocol, it enables digital signal transmission and two-way communication.

Key Features

HART communication protocol output with display capability
High accuracy (±0.1%) with excellent stability
Explosion-proof rating: ExiaIICT6
High protection level: IP68
Multiple cable options: PE, PTFT, PU
Versatile structures to meet various on-site requirements

Applications

Compatible with 316LSS and non-corrosive liquids
Water level monitoring in sewage, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and oil tank level monitoring

Performance Parameters

Parameter	Specification
Measurement Range	0~10m...400mH2O
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Accuracy @ 25ºC	±0.1% (Typ.) ±0.2% (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Operating Temperature	-20~80ºC
Housing Material	Cast aluminum, Stainless steel 1Cr18Ni9Ti
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68

Outline Construction

BH93420-III Advanced Water Level Transmitter for Industrial Applications 0

BH93420-III Advanced Water Level Transmitter for Industrial Applications 1

Electrical Connection

Ordering Information

Please ensure compatibility with measured medium and specify density when ordering.

BH93420-III Advanced Water Level Transmitter for Industrial Applications 3

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision (±0.1%), durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Up to 30,000 units/month. Contact sales for large orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Custom products may vary.

label:

Plaats van herkomst:	CN
Merknaam:	HT
Certificering:	CE, RoHS, ISO9001
Modelnummer:	BH93420-III

Min. bestelaantal:	1
Prijs:	70
