Gedetailleerde informatie

Drukbereik:	0-1m-400m	Type weergave:	Geleid
Nauwkeurigheidsgraad:	0.1%,00,25%	IP -beoordeling:	IP68
Netto gewicht:	1,6 kg	Diafragma -materiaal:	316L roestvrij staal
Meetbereik:	0 ~ 10m… 400m	Druktype:	Meting van de druk, absolute druk, verzegelde druk
Overbelastingscapaciteit:	≤ 2x nominaal bereik	Bedrijfstemperatuur:	-20 tot 80 °C
Opslagtemperatuur:	-30 ~ 100ºC	Woningmateriaal:	Gegoten aluminium, roestvrij staal 1cr18ni9ti
Isolatieweerstand:	> = 100mΩ@100VDC	Explosiebestendige classificatie:	ExiaIICT6
Uitgangssignaal:	4~20mA met HART
Markeren:	HART liquid level transmitter 0-400m range , IP68 water level transmitter , HART level transmitter with warranty

Productomschrijving

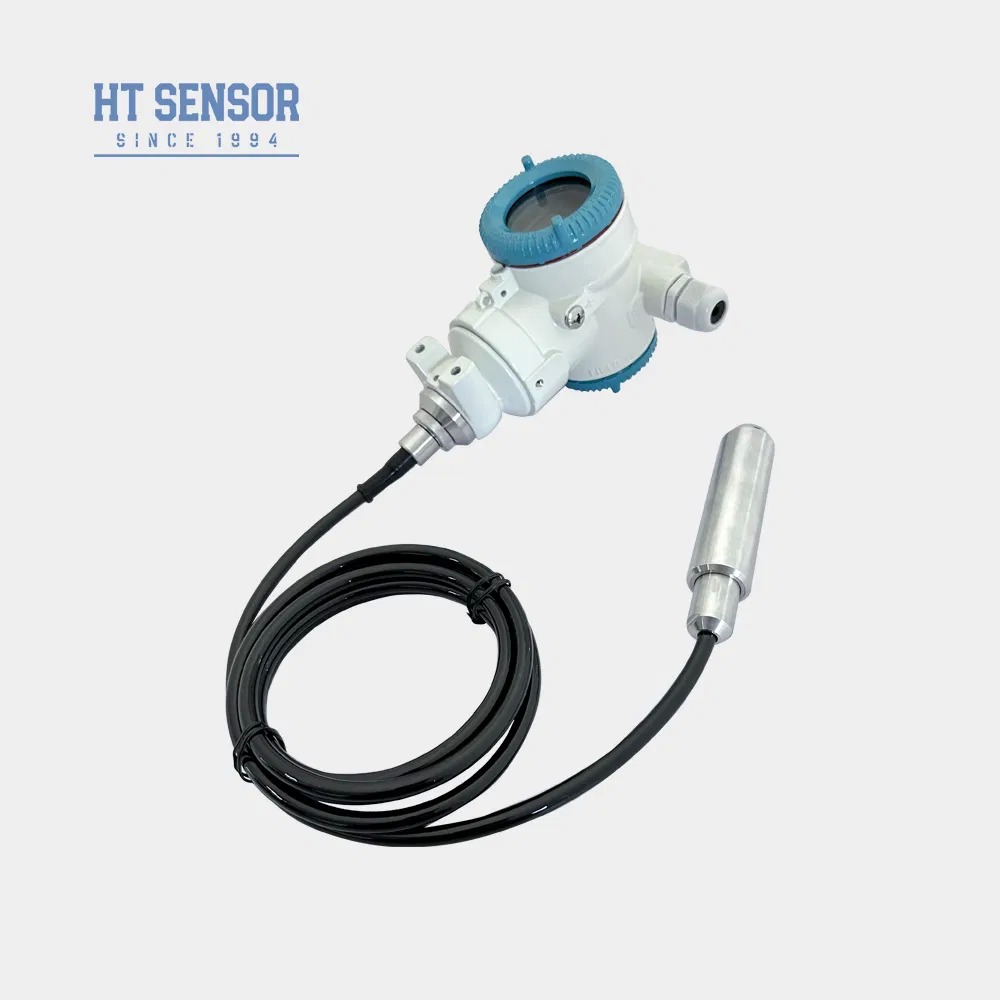

BHZ93420-III Series Liquid Level Sensor Transmitter with HART Protocol

Product Introduction

The BHZ93420-III insertion-type intelligent liquid level transmitter features a high-precision piezoresistive silicon pressure sensor for signal measurement. It accurately measures static pressure proportional to liquid level and utilizes HART communication protocol for digital signal transmission and two-way communication.

Key Features

HART communication protocol output with display capability
High accuracy and excellent stability
Explosion-proof rating: ExiaIICT6
High protection level: IP68
Available cable materials: PE, PTFE, PU

Applications

Compatible with 316L stainless steel and non-corrosive liquids
Water level monitoring in sewage systems, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
Diesel, fuel, and oil tank level monitoring

Performance Specifications

Parameter	Specification
Measurement Range	0~10m...400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Accuracy @ 25°C	±0.1% (Typ.) ±0.2% (Max.)
Long-Term Stability	±0.15%F.S/year (Max.)
Operating Temperature	-20~80°C
Housing Material	Cast aluminum, Stainless steel 1Cr18Ni9Ti
Explosion-proof Rating	ExiaIICT6
Protection Rating	IP68

Electrical Connections

Terminal	Function	Wire Color
1	V+	Red
2	V-	Yellow
3	NC/GND	-
4	NC	-

Ordering Information

Code	Option
D1	24VDC Power Supply
S1/S2	4~20mADC / 4~20mADC with HART
B4/B5/B6	2088 with display / 3051 / 3051A
G/A/S	Gauge/Absolute/Sealed Pressure
C1/C2/C3	PE/PU/PTFE Cable

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Customized products may vary.

Q: What is the warranty and after-sales service?

A: 24-month warranty with 24-hour response time for technical support.

label:

Certificering:	CE, RoHS, ISO9001

Min. bestelaantal:	1
Prijs:	40
