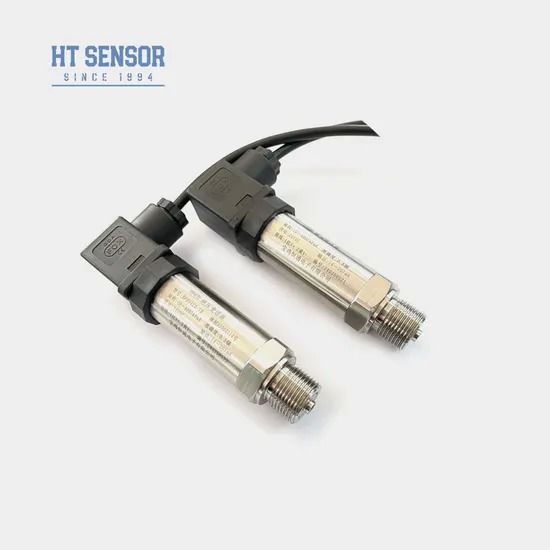

BPHT24-IX Pressure Transmitter Sensor 0.5G Accuracy IP65
Productdetails
| Model nr.: | BPHT24-IX | Het meetmedium: | Lucht, gas, vloeistof |
|---|---|---|---|
| Nauwkeurigheidsgraad: | 0.5g | Drukbereik: | 0kpa~35kpa...20MPa |
| IP -beoordeling: | IP65 | Druktype: | Meting van de druk, absolute druk, verzegelde druk |
| Woningmateriaal: | 316L | Gewicht: | 0,2 kg |
| Overladen: | ≤ 1,5 keer van het nominale bereik | Nauwkeurigheid @ 25ºC: | ± 0,25% (typisch) ± 0,5% (maximaal) |
| Langetermijnstabiliteit: | ± 0,1%fs/jaar (typ.) ± 0,2%fs/jaar (max.) | Bedrijfstemperatuur: | -20ºC ~ 80ºC |
| Opslagtemperatuur: | -40ºC ~ 120ºC | Diafragma -materiaal: | 316L |
| Isolatieweerstand: | 100MΩ 100VDC | ||
| Markeren |
BPHT24-IX pressure transmitter sensor,industrial pressure sensor IP65,pressure transmitter 0.5G accuracy |
||
Productbeschrijving
Producthoogtepunten
HT Sensor China Factory LED Flush Diagram Silicon Piezoresistive Pressure Transmitter Sensor BPHT24IX Pressure Transmitter The BPHT24IX pressure transmitter utilizes the HT series flush diaphragm silicon pressure-resistance isolation oil-filled core as the signal measuring element. The signal ...
19 mm olie gevulde druktransmitter diffuse siliconen druktransmitter water olie test
Oil Filled Diffused Sillcon Pressure Transmitter Sensor For Water And Oil Test 19mm Silicon Piezoresistive Pressure Sensor Introduction of Pressure Transmitter Sensor: HT19F functions as a silicon piezoresistive pressure sensor ,with a core consisting of a highly stable diffused silicon element,. It ...
OEM Water Oil Flush Diaphragma Druk Transmitter Drank Digitaal Niveau Druk Sensor
BP93420-IIIQT1 OEM water oil Beverage glue Flush Diaphragm Pressure Sensor Transmitter BP93420-IIIQT1 Pressure Transmitter Introduction of flush diaphragm pressure sensor: BP93420-IIIQT1 flush-diaphragm pressure sensor transmitter is an analog pressure transmitter with a flat membrane structure, ...
BPHT24-III Digitale druktransmitter Flush Diafragma Digitale druksensor
Hengtong BPHT24-III Digital Flush diaphragm pressure sensor Transmitter China BPHT24-III Pressure Transmitter Introduction of flush diaphragm pressure sensor transmitter: BPHT24-III pressure transmitter is mainly used in the pressure measurement of viscous liquid mud anti-scaling and anti-crystalliz...
BPZK04-2 Drukschakelaar Elektrisch 24VDC 4-20mA Digitale Drukschakelaar LCD Display Elektronische Drukschakelaar
24Vdc 4-20MA 2-Point Electronic Pressure Switch Digital Pressure Switch With LCD Display BPZK04-2 Electronic Pressure Switch Introduction: BPK-ZK04-2 electronic pressure switch is a set of pressure measurement, control display, transmission output as one of the full digital control products. It can ...
