Gedetailleerde informatie

Model nr.:	BH93420-IT	Drukbereik:	Gijkdruk, absolute druk
Nauwkeurigheidsgraad:	00,25%,00,5%	IP -beoordeling:	IP68
Netto gewicht:	0,3 kg	Diafragma -materiaal:	316L roestvrij staal
Stabiliteit:	± 0,1% F.S/Jar (Typ.)	Compensatie Temp.:	-10 ~ 70ºC
Meetbereik:	0 ~ 10m… 400m	Overladen:	≤ 2x nominaal bereik
Herhaalbaarheid:	± 0,03% (typ.) ± 0,05% FS (max.)	Bedrijfstemperatuur:	-20 tot 80 °C
Opslagtemperatuur:	-30 ~ 100ºC	Woningmateriaal:	1cr18ni9ti, 316l roestvrij staal
Explosiebestendige classificatie:	ExiaIICT6
Markeren:	HT Series liquid level transmitter , Hex liquid level transmitter IP68 , Water level transmitter 0.25% accuracy

Productomschrijving

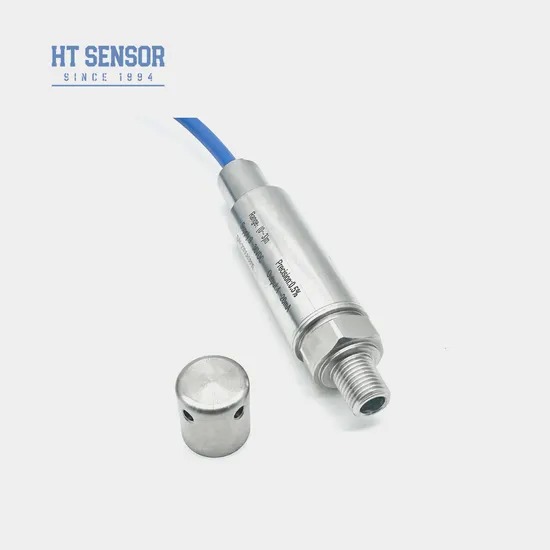

HT Series BH93420-IT Hex Liquid Level Transmitter Pressure Sensor

Product Overview

The BH93420-IT liquid level transmitter utilizes the HT series high-precision piezoresistive diffused silicon pressure sensor. Featuring a fully welded stainless steel housing with hexagonal and water guide head design, this transmitter employs waterproof sealing technology to meet various installation requirements and adapt to diverse application scenarios.

Key Features

Fully welded design ensures safety and reliability
Dual installation options: probe insertion or threaded installation
Rigorously tested for high and low temperature performance
Explosion-proof rating: ExiaIICT6
Available with PTFE or PU cables
Multiple output signal options

Applications

Compatible with 316L stainless steel and non-corrosive liquids
Water level monitoring in sewage, industrial/municipal water systems, tanks, wells, rivers, seawater, and lakes
Fuel level measurement in diesel and fuel tanks

Performance Parameters

Parameter	Specification
Measurement Range	0~10m...400m
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Accuracy @ 25°C	±0.25% (Typ.) ±0.5% (Max.)
Operating Temperature	-20~80°C
Housing Material	1Cr18Ni9Ti, 316L Stainless Steel
Protection Rating	IP67, IP68
Output Signal Options	4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485

Product Construction

Ordering Information

Please ensure compatibility with your measured medium and specify medium density when ordering.

Selection	Options
Power Supply	D1: 24VDC \| D2: 5VDC \| D3: Other
Output Signal	S1: 4~20mADC \| S2: 1~5VDC \| S3: 0~5VDC \| S4: 0~10mADC \| S5: 0~20mADC \| S6: 0~10VDC \| S7: 0.5~4.5VDC \| S8: RS485
Pressure Type	G: Gauge Pressure \| A: Absolute Pressure \| S: Sealed Reference Pressure
Material	01: 304 Stainless Steel \| 02: 316L Stainless Steel
Cable Material	C1: PU \| C2: PTFE

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Customized products may vary.

label:

Certificering:	CE, RoHS, ISO9001

Min. bestelaantal:	1
Prijs:	60

HT Series BH93420-IT Hex Liquid Level Transmitter 0.25% Accuracy IP68
