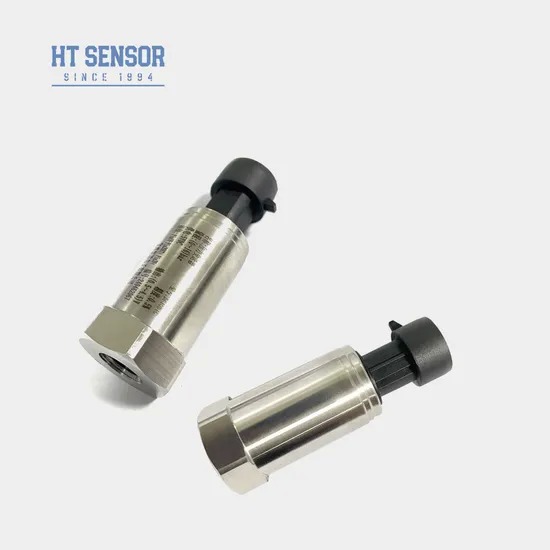

BP156 Pressure Transmitter 0.2G Accuracy IP65 for Air Compressors
Product Details
| Model nr.: | BP156 | Het meetmedium: | Gas |
|---|---|---|---|
| Nauwkeurigheidsgraad: | 0,2 g | Drukbereik: | 0kpa~10kpa...5MPa |
| IP -beoordeling: | IP65 | Druktype: | Meting van de druk, absolute druk, verzegelde druk |
| Woningmateriaal: | 316L | Gewicht: | 0,1 kg |
| Diafragma -materiaal: | 316L | Bedrijfstemperatuur: | -20ºC ~ 80ºC |
| Opslagtemperatuur: | -40ºC ~ 120ºC | Trillingsweerstand: | 10G, 55Hz ~ 2kHz |
| Isolatieweerstand: | 100MΩ 100VDC | Explosiebestendige classificatie: | Ex db IIC T6 GB |
| Frequentierespons: | 2.4kHz | ||
| Markeren |
BP156 air compressor pressure transmitter,0.2G accuracy pressure sensor,IP65 industrial pressure transmitter |
||
Product Description
The BP156 pressure transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. Featuring advanced technology and a high-performance transmitter circuit, this compact device offers excellent moisture resistance and anti-electromagnetic interference capabilities.
- Wide measuring range with stainless steel construction
- Compact and lightweight design
- Adjustable zero and full-scale settings
- High precision with all stainless steel structure
- Multiple pressure interface options
- Pressure measurement of non-corrosive gases and liquids (316L stainless steel)
- Marine and aviation industries
- Industrial processes including petroleum, chemical, metallurgy, and power generation
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa...5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Operating Temperature | -20ºC~80ºC |
| Housing Material | 304, 316L |
| Protection Rating | IP65 |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC |
- Ensure medium compatibility with product contact parts
- Explosion-proof models exclude digital display heads
- Minimum 20VDC required for transmitters with LCD/LED displays
- Recommended installation of lightning protection devices
- Default cable length: 1.5m (polyethylene material)
Our transmitters offer high precision, durability, and excellent performance. Customization options are available to meet specific requirements.
Yes, our engineering team can develop customized solutions. We provide comprehensive OEM and ODM services.
Our facilities can produce up to 30,000 units monthly. For large orders, please contact our sales team for scheduling.
Standard models ship in 5-8 working days. Custom products may require additional time.
