4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy

4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy
4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy
Basisinformatie
Certificering: CE, RoHS, ISO9001
Min. bestelaantal: 1
Prijs: 42
Beste prijs Contact nu
Gedetailleerde informatie
Uitgangssignaal: 4-20mA of RS485 IP -beoordeling: IP68
Netto gewicht: 0,3 kg Diafragma -materiaal: 316L roestvrij staal
Nauwkeurigheid: 00,25%, 0,5% Meetbereik: 0 ~ 10m… 400m
Druktype: Meting van de druk, absolute druk, verzegelde druk Overbelastingscapaciteit: ≤ 2x nominaal bereik
Herhaalbaarheid: ± 0,03% (typ.) ± 0,05% FS (max.) Langetermijnstabiliteit: ± 0,2% F.S/jaar (max.)
Bedrijfstemperatuur: -20 tot 80 °C Opslagtemperatuur: -30 ~ 100ºC
Woningmateriaal: 1Cr18Ni9Ti Isolatieweerstand: > = 100mΩ@100VDC
Explosiebestendige classificatie: ExiaIICT6
Markeren:

4-20mA submersible water level sensor

,

IP68 water level transmitter

,

high accuracy water level sensor

Productomschrijving

4-20mA Diffused Silicon 0.25%F.S Submersible Water Level Sensor Transmitter BH93420
Product Overview

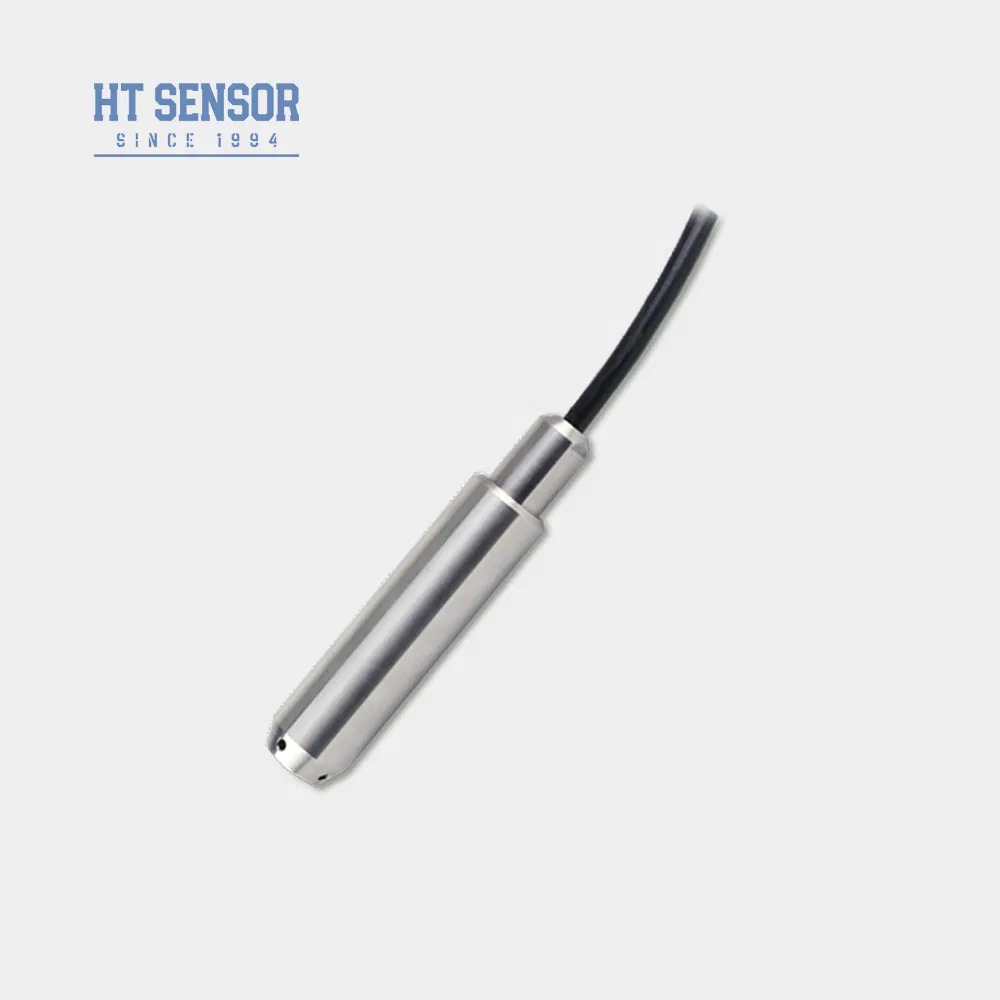

The BH93420-I water level sensor utilizes HT series diffused silicon isolation oil-filled core as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this transmitter offers excellent waterproof performance with its completely sealed stainless steel sensing part.

Key Features
  • Full stainless steel housing for diverse testing environments
  • Immersion-type probe measurement for easy installation
  • Multiple output signal options available
  • Explosion-proof certification: ExiaIICT6
  • High protection rating: IP68
  • PE or PU cable options
Applications
  • Compatible with 316LSS and non-corrosive liquids
  • Water level monitoring in sewage systems, industrial/municipal water, tanks, wells, rivers, seawater, and lakes
  • Fuel level measurement in diesel and fuel tanks
Performance Specifications
Measurement Range 0~10m...400m
Pressure Type Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload ≤ 2X rated range
Accuracy @ 25ºC ±0.25% (Typ.) ±0.5% (Max.)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.2%F.S/year (Max.)
Operating Temperature -20~80ºC
Protection Rating IP67, IP68
Explosion-proof Rating ExiaIICT6
Output Signal Options
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V, 0/1~10V, 0.5~4.5V 5VDC
RS485 Communication Protocol 3.6~30V / Battery 4 wire
4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 0 4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 1 4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 2 4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 3 4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 4
Ordering Information
Please ensure the measured medium is compatible with product components and specify the medium density. For strong electromagnetic/RF interference environments, please provide details.
Order Guide
Parameter Options
Power Supply D1: 24VDC | D2: 5VDC | D3: Other
Output Signal S1: 4~20mADC | S5: 0~20mADC | S2: 1~5VDC | S6: 0~10VDC | S3: 0~5VDC | S7: 0.5~4.5VDC | S4: 0~10mADC | S8: RS485
Pressure Type G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure
Material 01: 304 Stainless Steel | 02: 316L Stainless Steel
Cable Material C1: PE | C2: PU
4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 5 4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 6 4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 7 4-20mA Submersible Water Level Sensor Transmitter IP68 0.25% Accuracy 8
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
What is the warranty and after-sales service?
24-month warranty with 24-hour response time for after-sales support.
